Stalling

[TURBO200R4]

Maurice, I haven't done a data capture using TuneECU, but looking at the app, I think you'll need to go to the data page, then go to the menu to view the data types and enable the ones you want to capture. I believe there is a limitation to how many can be displayed at once. I'd suggest things like throttle position and whatever sensors look important to your issue. I also don't think it records automatically. It'll display the data in real-time while you're riding, but if you want to record it, I believe you need to go back to the menu and enable logging.

I would suggest injector pulse in the recording
if u manage to pull this off we may b able to put those recordings on each of our laptops and side by side compare the good and the bad.
off the wall stuff i have seen cry products computer/ecu go bad and just keep increasing injector pulse width.



[maurice]

Maurice, I haven't done a data capture using TuneECU, but looking at the app, I think you'll need to go to the data page, then go to the menu to view the data types and enable the ones you want to capture. I believe there is a limitation to how many can be displayed at once. I'd suggest things like throttle position and whatever sensors look important to your issue. I also don't think it records automatically. It'll display the data in real-time while you're riding, but if you want to record it, I believe you need to go back to the menu and enable logging.

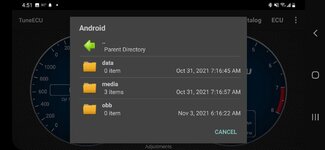

Does not look like you choose what to capture. I rode with it connected and it shows my date, but no info captured. Is that because no problems. Here are a couple of screen shots .. notice Nov. 3



[maurice]

Rode 1.25 hrs today in busy traffic, following school bus on purpose, no stall. Leaving scanner connected, ride each day. Have 1 week before dealer drop off. Need a stall.



[TURBO200R4]

Rode 1.25 hrs today in busy traffic, following school bus on purpose, no stall. Leaving scanner connected, ride each day. Have 1 week before dealer drop off. Need a stall.

may b i can help
u r going to have to slect the data u want to record then hit record. the data should be recorded even without problem.
i think u have to pull seat to get to dongle to push the little button on dongle. if u stop by i will lend u my two foot extension so u can put the dongle i the bag and u wont have to pull seat.. although i dont remember your seat as being hard to pull.



[maurice]

may b i can help
u r going to have to slect the data u want to record then hit record. the data should be recorded even without problem.
i think u have to pull seat to get to dongle to push the little button on dongle. if u stop by i will lend u my two foot extension so u can put the dongle i the bag and u wont have to pull seat.. although i dont remember your seat as being hard to pull.

Seat is easy removal. Don't think my scanner has a button to push. Will look in the morning. Maybe once connect to tuneecu there is selection on app to choose what to record. Will check in the morning.
Thanks for that. Will see first if I find what's needed. Without connecting to bike app does not show any such selection.



[Frans]

Hermon. Before I head out with scanner in search of a stall, there is nothing I need to do to app other than connect to bike and ride? There is a "data" selection on app that I assume after ride will give info.

You need to go the link i provided earlier and read it:--> Android TuneEcu Information

pay special attention to the bottom of that webpage and read the information about how to record the sensor data

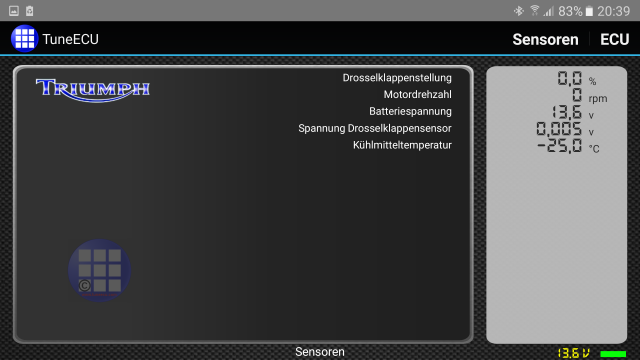

Sensor Screen:

In the Sensors Screen, all sensors in the bike can be checked for their values.

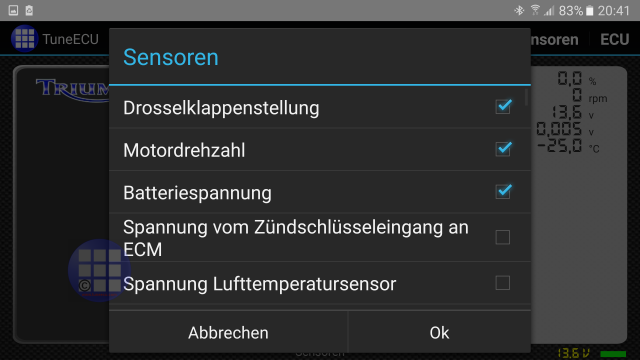

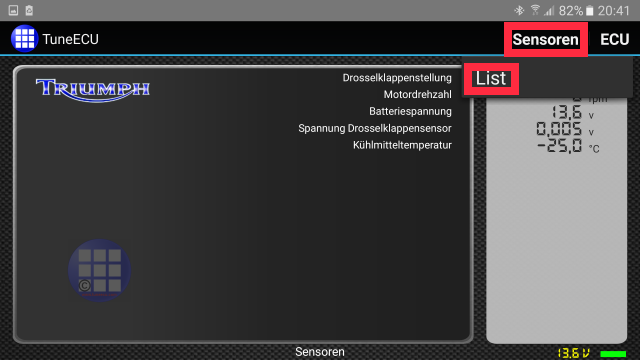

It can be selected via a submenu, the sensors whose values you want.

Sensor data recording:
- Click twice on the "REC" button (or do a long press for Android version 4),
it must turn green and the red dots must appear at right of the values.
- Select your bike and connect. When datas are recording, the "REC" button turn red.
- The recording is stopped by a long press on the "REC" button again.

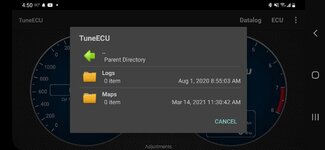

A Datalog file is saved in .csv format in the "TuneECU/Logs" folder on your Android device.
This file can be played in the Dashboard Screen or opened and viewed in a screen.



[Zutt]

Rode 1.25 hrs today in busy traffic, following school bus on purpose, no stall. Leaving scanner connected, ride each day. Have 1 week before dealer drop off. Need a stall.

Did you try to twist throttle forward, just for the heck of it? I haven't had chance to ride, otherwise would've done it.



[maurice]

You need to go the link i provided earlier and read it:--> Android TuneEcu Information

pay special attention to the bottom of that webpage and read the information about how to record the sensor data

Thank you for that! Assuming auto recording when connected not good. Sorry I didn't follow earlier link.
Will see today.



[maurice]

Did you try to twist throttle forward, just for the heck of it? I haven't had chance to ride, otherwise would've done it.

Sure did, multiple times. this is clearly not repeatable at will.



[maurice]

Recorded today's ride and as expected, No stall.

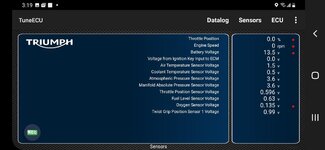

Question. The sensor screen had 4 parameters already checked to record. I checked everything. Maybe 20. Instructions said recording button turns green and at right of each figures should show red dots. Why only the 4 and not all? Maybe those 4 are the only ones needed?
Pray I stall by Tuesday!
