No special tools needed, just a phillips head screw driver, the cleaning and sending full send that turbo described has worked before on others, if you have stock air cleaner its harder, but tune ecu is all you need. Heat up bike, to normal operating temperature. Tank propped, there are 2 screws on top of throttle bodies by vacuum line ports. The screw on left is cyl1 and the screw to right does 2 and 3, have tune ecu up and running, bike running, the map pressures are very easily moved so make an adjustment like quarter turn and let bike adjust to change, now make adjustments to other screw, let smooth out, work your numbers so they move together, youre not far off, looking for 10. Anything the bike dont like go back to where you were, its not hard but can be frustrating but you will just go slow and let bike correct to every 1/4 turn snd decide if tge bike liked the change, map -#s should close up close to each other say 610. But clean first and fling the throttle ( bike off) .

Thanks for your input.
Today i tried do do the balancing myself, quite a hassle with the air plenum, but sorted it out. First sprayed al the springs with wd40 and cleaned the trouble body with egr cleaner. Then started balancing

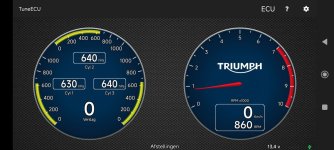

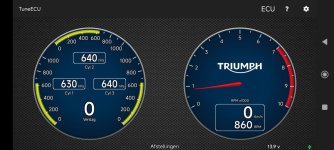

I was working for 610 hpa but could not get that, whatever i tried. My new readings attached. The bike idles much better now and runs a lot smoother. Stil have a little decel popping but not to much i guess.
What you guys think, should i leave it this way or could the dealer make it anny better?
By the way, i reinstalled the original 20367 before the balancing.
Best regards. Martin


Attachments

  • Screenshot_2025-08-06-13-18-43-123_com.tuneecu.jpg
    98.2 KB · Views: 7
  • Screenshot_2025-08-06-13-18-51-138_com.tuneecu.jpg
    98.3 KB · Views: 8
  • Screenshot_2025-08-06-13-18-37-771_com.tuneecu.jpg
    98.2 KB · Views: 8
I used this one: NELS-TORS_RAMAIR-K&N.
Pretty sure it's a 20368.
I had the RamAir filter installed and TORS, with custom 3-2 crossover. (Plugged the O2 sensor, too.)
The 7 years I had it averaged 32.322 MPG.
------------------------------------------------------
I used a different one for a bit but
Re installed this map Sep. 26 2020. 26841 Miles.
Set Speedometer difference to 0%.
I changed 2nd Throttle to all 100. (Changed the four 95's to 100

"NELS-TORS_RAMAIR-K&N"

Touring Tune by Nels at TwoWheelDynoWorks
Full Remap of F/L/I tables done by Nels for a Touring With TORs and RAMIAR/K&Ns

Version 2018-06-09
Release Date Jun 9, 2018
Downloads 34
Average Rating 5 Star (of 5). 2 ratings

Redline at 6500
Fan Activation at 95c
Speedo -5.5%
Speeed Limit 299kph
