Hydraulic clutch woes

[micromike1]

Hi all

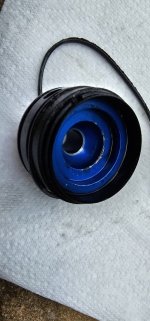

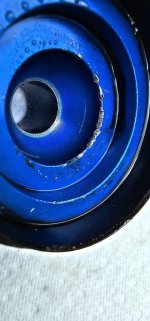

Had the pleasure of my clutch packing up, nothing at the lever ,managed to get a friend with a car trailer to get me home Mine has the TTS hydraulic conversion and this is what i found on dismantling ,O rings shot and damage marks on the Oberon slave ,
Phoned Oberon ordered a new unit that comes with silicon 70 o rings ,the dome on the the TTS part does not match the Oberon part to well so will modify or get a Buell part.
Read thro some old posts and not so old ones and i should have seen this coming



[HarryBo]

Crap! Sorry to hear. Appreciate breakdown analysis.



[R-III-R Turbo]

This fault has been figured out alright and Oberon informed years ago so I hope they've heeded by now.

The o rings need to be DOT 4 compatible rubber like EPDM.
Links to a source in the threads below.
Oberon used to supply the slave with Viton rings and they fail.

Hydraulic clutch release went pop

So I'm pootling along in 5th and coming up to a roundabout, go to change gear and find my clutch lever is limp. So i had to take that roundabout in 5th gear :eek: Worked the throttle then to get the tranny to that nice unburdened point in between being pushed by the motor and being dragged by...

www.r3owners.net

Oberon slave cylinder used in the TTS kits

Having clutch problems with a leaking slave cylinder. Looks to me like a O ring has failed. I know most of us with the Oberon Buell 1125 slave cylinder used on TTS supercharger kits have had a few problems. The latest problem for me was i noticed a lost of clutch fluid. On further investigation...

www.r3owners.net

Re the dome or bullnose nut, the TTS one does indeed have trouble seating into the slave cylinder ok, I ordered the Buell one and it fits perfect (the slave is made for a Buell) but the bore and thread are a size down from the TTS pullrod so you can't use it without modifying either the pullrod or the bullnose nut.
